Challenger Alpha Rotary Tiller

Salient Features:

Challetillage rotary tiller is a secondary tillage implement offering best in class pulverization and optimum seed germination
Robust hitch pyramid for better load distribution
Equipped with heavy duty multispeed gearbox for wider range of rotor speed.

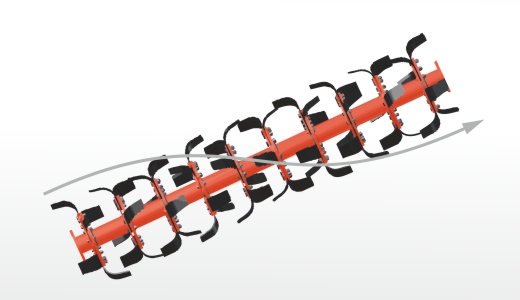

Ensures excellent cutting and mixing of crop residue
Renowned 13x23 Crown pinion for heavy duty work.

Specifications

PRODUCT		CHALLENGER ALPHA ROTARY TILLER
Size	Tillage width (in/cm)	Total Width (in/cm)	Total Length (in/cm)	Height (in/cm)	Weight (KG) Approx	PTO Speed RPM	No. Of Blades	Types of Blades	Suitable Tractor HP	3-Point Hitch Type	Transmission type	Rotor tube diameter (in/cm)	Rotor Swing dia (in/cm)	Driveline safety Device

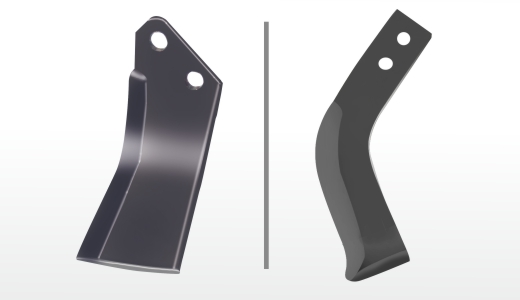

5 Feet	59/149	70/179	35/90	44/112	430	540/1000	36	L/C	45-50	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
5.5 Feet	66/168	77/194	35/90	44/112	445	540/1000	36/39	L/C	50-55	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
6 Feet	69/175	80/204	35/90	44/112	460	540/1000	42	L/C	50-55	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
7 Feet	79/200	90/230	35/90	44/112	490	540/1000	48	L/C	55-60	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
8 Feet	87/220	98/249	35/90	44/112	536	540/1000	54	L/C	60-65	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
9 Feet	106/269	118/298	35/90	44/112	570	540/1000	60	L/C	70-75	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
10 Feet	114/291	126/320	35/90	44/112	640	540/1000	66	L/C	75-90	Cat-II	GEAR	3.5/9	18/46	SHEAR BOLT
The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer.
