Salient Features:
| Product | IN-LINE SQUARE BALER 1900 | ||||||
|---|---|---|---|---|---|---|---|
| Bale Size | |||||||
| Bale size (WH) (mm) | 457 / 357 | ||||||
| Bale length (mm) | upto 1300 | ||||||
| Dimension & Weights | |||||||
| Overall width (mm) | 2600 | ||||||
| Transport width (mm) | 2600 | ||||||
| Overall length-less bale chute (mm) | 4760 | ||||||
| Overall length-less bale chute (mm) | 5660 | ||||||
| Overall height (mm) | 1700 | ||||||
| Weight (Approx) Kg | 1570 | ||||||
| Main Drive System | |||||||
| Protection | Slip clutch, overrunning clutch & flywheel shear bolt | ||||||
| Pick-up | |||||||
| Lift Lower (mm) | Hydraulic | ||||||
| Effective working width (mm) | 1928 | ||||||
| Number of tine bars | 4 | ||||||
| Number of double lines | 56 | ||||||
| Drive protection | Torque limiter | ||||||
| Auger diameter (mm) | 280 | ||||||
| Feeding System | |||||||
| Packer | 4 tine fork | ||||||
| Protection | Shear bolt | ||||||
| Plunger | |||||||
| Speed (strokes/min) | 100 | ||||||
| Length of stroke (mm) | 550 | ||||||
| Number of plunger roller bearings | 8 | ||||||
| Tyne Mechanism | |||||||

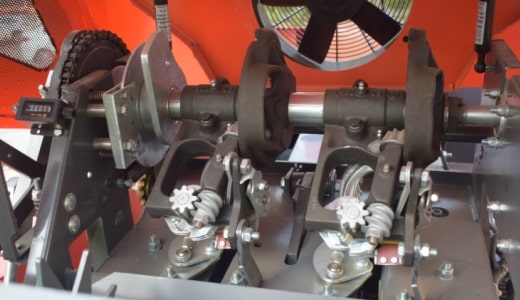

| Number/Type of knotters | Two heavy duty knotters | ||||||
| Twine Type | High capacity knotters | ||||||

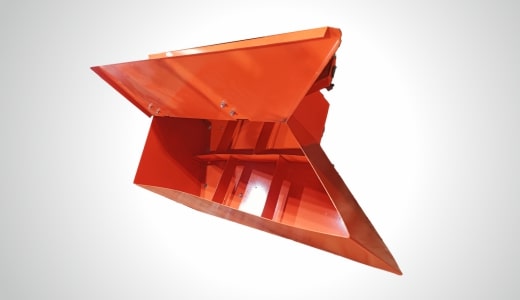

| Capacity | 12 spools | ||||||
| Tyres | |||||||
| Standard | 10.0/75-15.3 | ||||||
| Bale Density Control | |||||||
| Standard | Hydraulic density control | ||||||
| Recommended Horsepower | |||||||
| Tractor horsepower (HP) | 55 & above | ||||||
| PTO operating speed (rev./min) | 540 | ||||||
| PTO type | Type 113/8" 6 spline CV PTO Shaft | ||||||
| Hydraulic spool valve requirement (min/rec) | One | ||||||
| The Product & Specifications are subject to change/discontinue without any notice on the sole discretion of manufacturer. | |||||||
